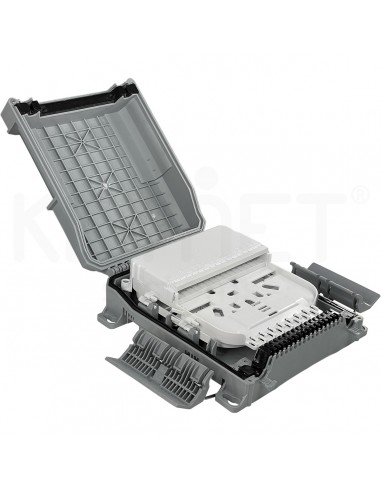

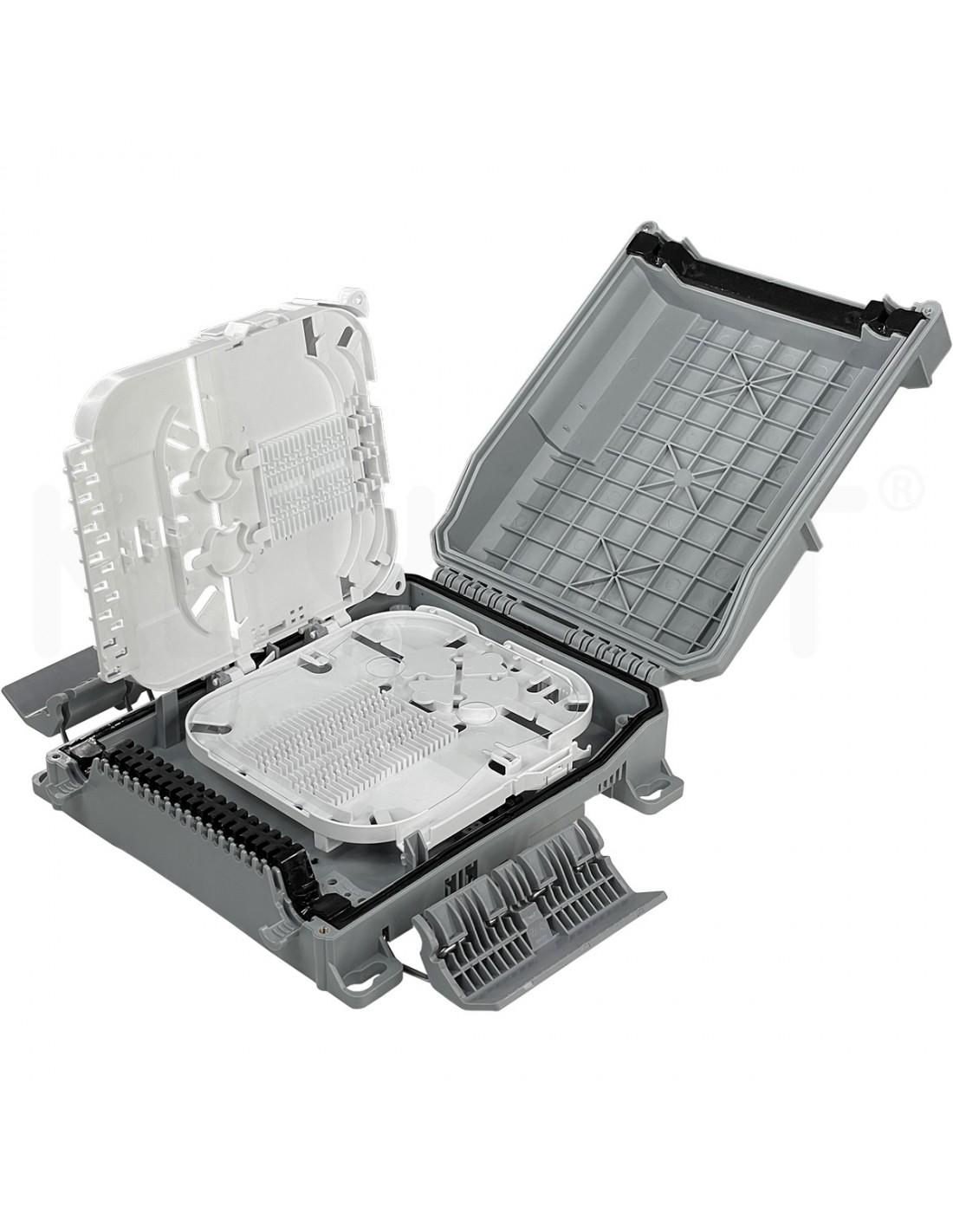

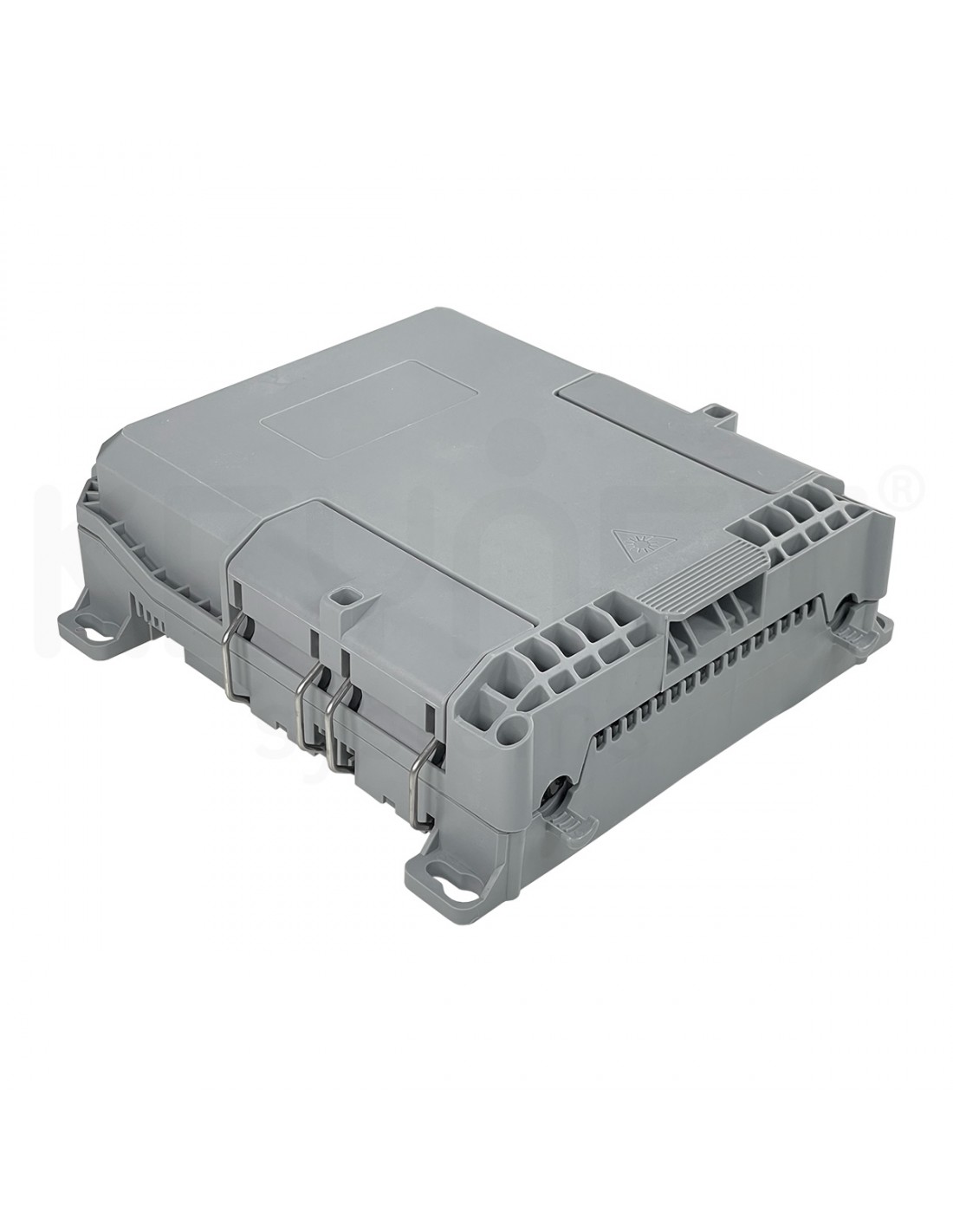

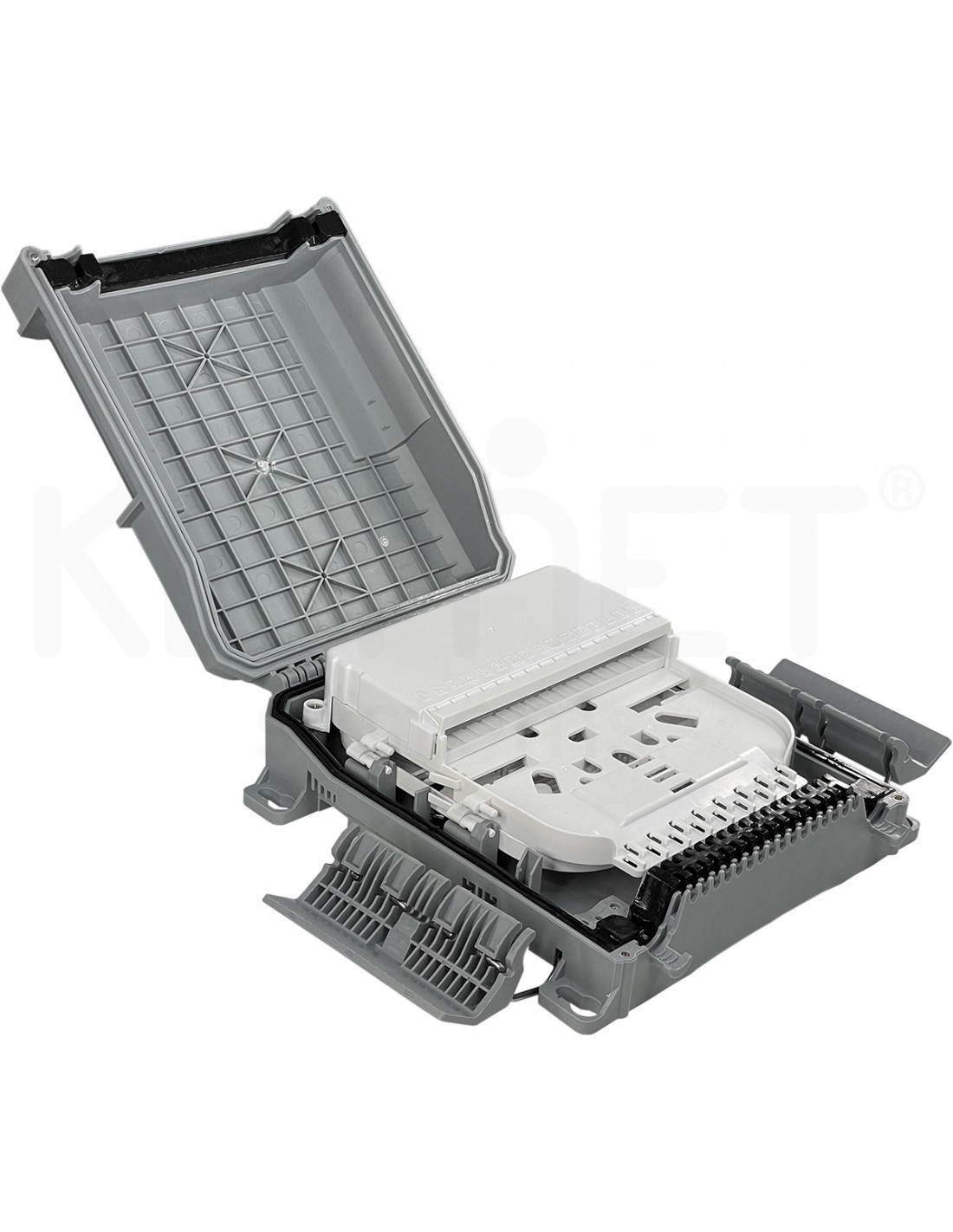

FTTh box IP68 2p in-out 16p SC, 32 splices

FDO-5016-A

FTTh fiber optic distribution box IP68 exterior.

IP:68.

Adapter capacity: 16 + 2 SC sx / LC dx adapters type.

Lid: Removable upper hinge lid.

Cierre: 2 side flaps + 2 screws.

Entry ports: 2 x ø 5-14 mm clamp.

Exit ports: 16 x ø 2-3 mm section / 3x2 mm (flat cable) .

Trays: 2 Tray.

Splicing capacity: up to 80 splices (16/32 upper tray y 24/48 Inferior tray).

Splitter capacity: 3 x tipo B/C (upper tray).

Measurements: 237x271x77mm.

Colour: grey.

€35.76 PVR /ud

VAT excluded

Description

FTTh box IP68 2p in-out 16p SC, 32 splices, 231x271x77mm PP grey

Product Details

Precio por: ud
IP: 68
Tapa: Abatible superior con bisagras
Adaptadores: 16 x SC/LC dx
Divisores
Cierre
Dimensiones
Capacidad total de empalmes
Colour: Grey
Puertos de entrada: 2 puertos de entrada
Puertos de salida: 16 puertos de salida
Bandejas: 2 bandejas

It is necessary to be registered in order to view and download the technical documentation. Please choose an option: I want to register or I want to log in
