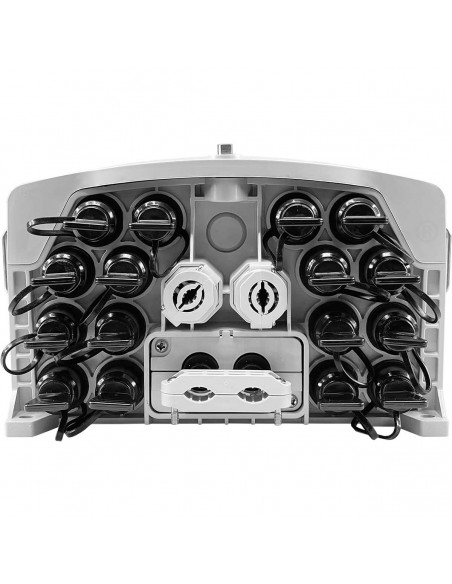

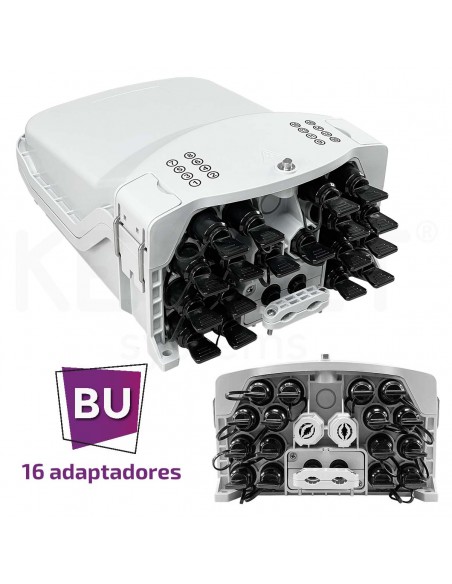

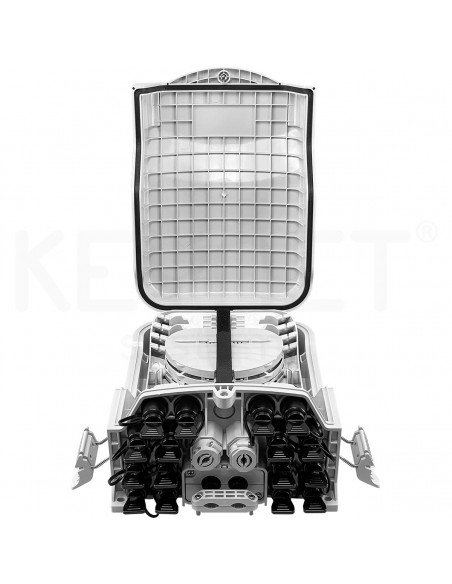

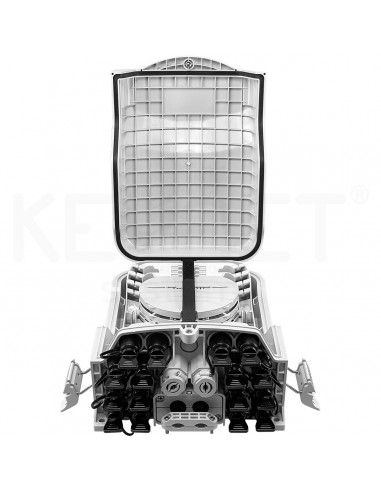

Distribution box 4p/16p w/16 adapt BU

FTTh fiber optic distribution box for installations, with reduced dimensions, high capacity and diversity.

IP:65.

Adapter capacity: 16 SC/APC adapters type BU.

Lid: Removable upper lid.

Closure: Cosure with 2 side latches + D key.

Main port: 1 Oval mid-span of 2x 14mm with double clamp + FRP retainers.

Segregation port: Clamp of 17mm with fixture locking screw.

Input ports: 16 SC/APC adapters BU type).

Tray: 4 (1 x A-1 tray / 2 x A tray / 1 x D tray).

Splicing capacity: 12 (A-1 tray) + 3/6 (A tray) + 12/24 (D tray).

Dividers: 1 x B/C type (A-1 tray) + 1 x D type (A tray) *(D n/a tray).

Measurements: 319x214x133mm.
