Wall in-line closure 8p/16p w/16 BU+Split 1:8

FDO-IP-A816-BU16-2SP18SA

FTTh fiber optic box IP65 with splice trays.

IP:65.

Adapter capacity: 16 adapters SC/APC BU type.

Included splitter: 2 Splitters 1:8 type incluided.

Entry ports:8 grommet type (4+4 in line) 5~16mm.

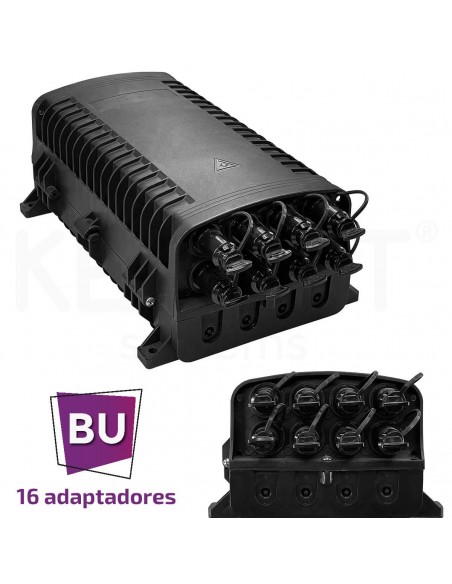

Exit ports: 16 entry ports with a diameter of 17x5mm with 16 SC/APC adapters BU type.

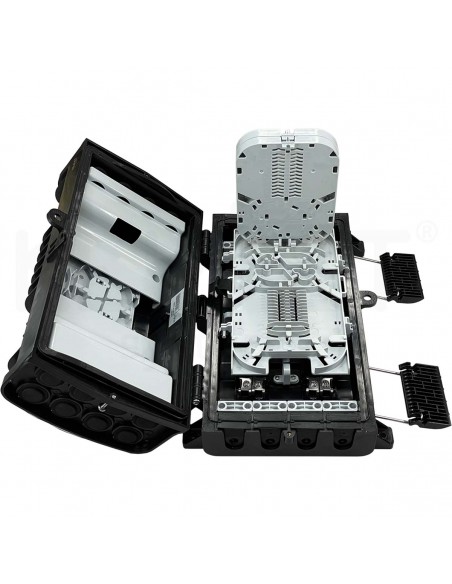

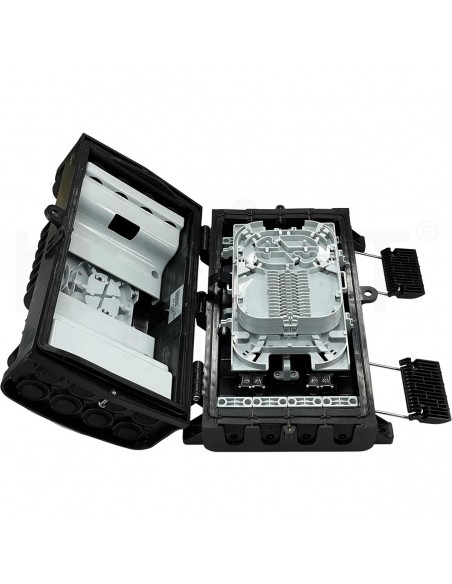

Trays: 4 (1 x lid on tray/ 2 x A-sectional tray /1 x B-main tray).

Splicing capacity: 10/20 (B-main tray) y 12/24 (A-sectional tray on 2 heights).

Dividers: 1 x A/B/C type (tray + lid) + 2 x A/B/C tray (A-sectional tray) + 2 x A/B/C tray (B-main tray).

Measurements: 313x195x120mm.

Colour: black.

€141.77 PVR /ud
VAT excluded

Description

Wall in-line closure 8p/16p w/16 BU+2 Split 1:8 SC/APC 313x195x120mm black

Product Details

Precio por
ud
Embalaje
IP
65
Adaptadores
16 SC/APC tipo BU
Divisores
5 tipo A/B/C
40 x 4 x 4mm
50 x 7 x 4mm
60 x 7 x 4mm
Dimensiones
313 x 195 x 120mm
Capacidad total de empalmes
10/20
12/24 (doble altura)
Colour
Black
Splitter incluido
2 splitter tipo 1:8 incluidos
Puertos de entrada
8 puertos de entrada
Puertos de salida
16 puertos de salida
Bandejas
4 bandejas
