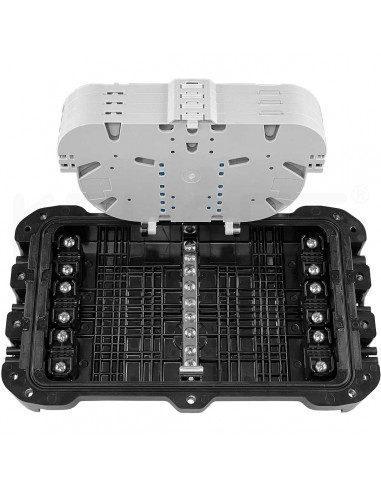

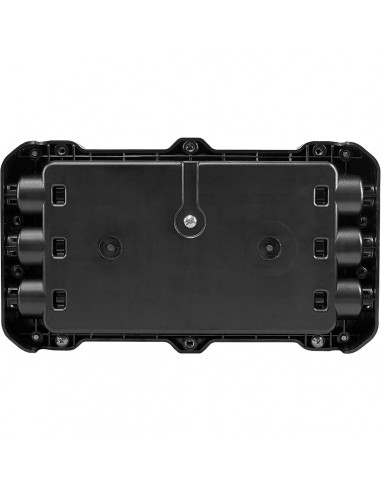

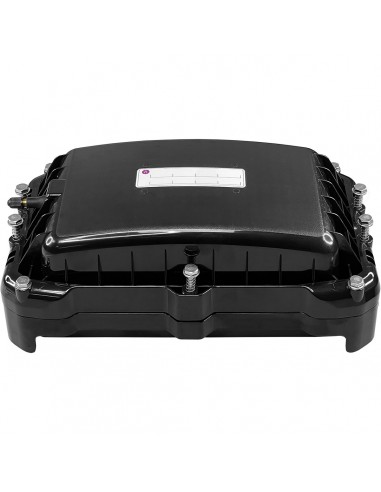

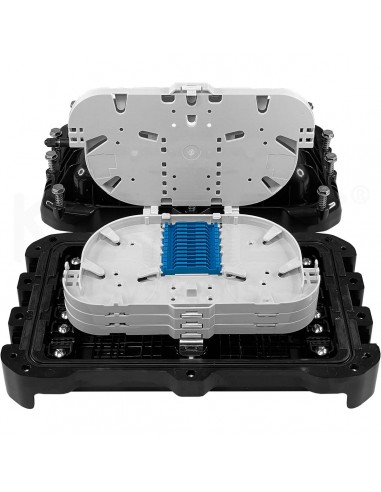

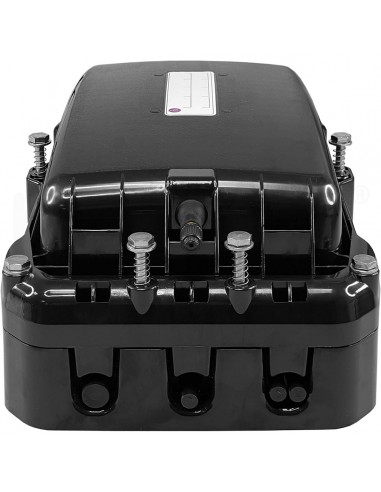

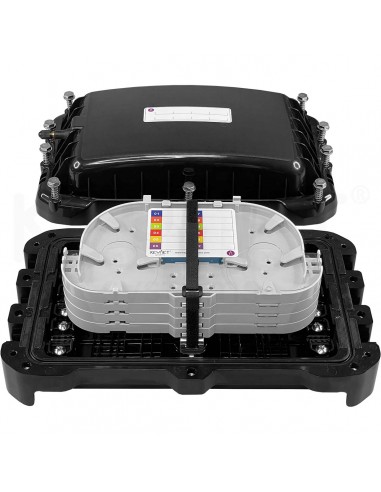

Closure wall/underground IP68 6p 48/96c

EL-486-A1

Fiber optic IP68 enclosure for splicing and segregation.

IP:68.

IK: 10.

Entry ports: 6 grommet ports.

Exit ports: 6 grommet ports.

Trays: 4 non expandable trays.

Splicing capacity: Up to 48/96 splices (12/24 per tray).

Dividers: 1 A/B/C/D/E type.

Measurements: 330x195x125mm.

Colour: Black.

€153.62 PVR /ud

VAT excluded

Description

Closure wall/undergr. IP68 6p 48/96c (4x12/24) Ø3-17mm 330x195x125mm

Product Details

Precio por: ud
Embalaje
IP: 68
IK: 10
Divisores: 1 Tipo A/B/C/D/E
40 x 4 x 4mm
50 x 7 x 4mm
60 x 7 x 4mm
Dimensiones: 330 x 195 x 125mm
Capacidad total de empalmes: 48/96 fusiones
Colour: Black
Puertos de entrada: 6 puertos de entrada
Puertos de salida: 6 puertos de salida
Bandejas: 4 bandejas

It is necessary to be registered in order to view and download the technical documentation. Please choose an option: I want to register or I want to log in
