IP68 / IP65 -outdoor- fibre enclosures and housings

FTTh FO splice closure IP68, 1oval+6ports, 10trays 244 fus.

FTTh fiber optic distribution box IP68 exterior. IP:68. Entry ports: 2 x ø 15-20 mm (midspan) with 1 metal support for clamp + tensor + tow press. Exit ports: 6 x ø 15-20 mm section grommet. Trays: 12 Trays. Splicing capacity: up to 144/288 splices. Dividers: 1 x tipo B/C per tray. Measurements: 245x395x130mm. Colour: Black.

FTTH-1000-8

€129.80

IP68 / IP65 -outdoor- fibre enclosures and housings

In-line closure IP68 4p 128/64c (8x8/16)+split

In line enclosure IP65 4 ports. IP:65. IK: 09. Entry ports: 4 Grommet ports. Exit ports: 4 Grommet ports. Trays: 8 Trays. Splicing capacity: Up to 64/128 total splices (8/16 x 8 trays). Measurements: 390x115x160mm.

EL-4128-MC

€95.815

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure IP68 4p 256/128c (8x16/32)+split

IP65 fiber optic enclosure for splicing and segregation. IP:65. IK: 09. Entry ports: 4 Grommet ports. Exit ports: 4 Grommet ports. Trays: 8 Trays. Splicing capacity: Up to 128/256 total splices (16/32 x 8 trays). Dividers: 2 B/C/D/E types. Measurements: 560x285x95mm. Colour: grey.

EL-4256-C1

€121.95

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground IP68 6p 144/288c

In line fiber optic enclosure for splicing and segregations. IP:68. IK: 10. Entry ports: 6 grommet ports. Exit ports: 6 grommet ports. Trays: 6 trays. Splicing capacity: Up to 144/288 total splices (24/48 x 6 trays). Measurements: 390x115x160mm. Colour: Black.

EL-1446-A1

€234.00

IP68 / IP65 -outdoor- fibre enclosures and housings

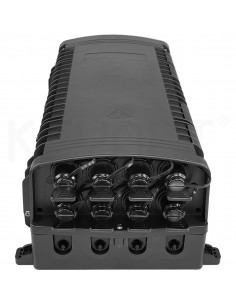

Closure wall/pole/aer IP65 8p 5 trays

Fiber optic IP65 enclosure. IP:65. IK: 10. Lid: Removable side lid. Closure: Closure by 4 lateral latches + 2 security locking screws (optional ø7,75mm lock). Entry ports: 8 grommets 5-16mm with clamp + tensor. Exit ports: 16 exit ports with 17-5mm and plastic fixture. Tray: 5 trays. Splicing capacity: Up to 160 total splices for (16/32 x 5 trays)....

EL-800-8

€104.29

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/pole/aer 8p 5x32splc incl 16 adapt

Fiber optic IP65 enclosure box for splicing. IP:65. IK: 10. Lid: Removable side lid. Closure: Closure with 4 side latches + 2 security locking screws (available ø7,75mm lock). Entry ports: 8 SC/APC type ports BU types 5-16mm with clamp + tensor. Exit ports: 16 exit ports with 17-5mm plastic fixture. Trays: 5 trays. Splicing capacity: Up to 160 splices for...

EL-800-16BU-SA

€157.88

IP68 / IP65 -outdoor- fibre enclosures and housings

copy of Closure wall/underground IP68 6p 48/96c

Fiber optic IP68 enclosure for splicing and segregation. IP:68. IK: 10. Entry ports: 6 grommet ports. Exit ports: 6 grommet ports. Trays: 4 non expandable trays. Splicing capacity: Up to 48/96 splices (12/24 per tray). Dividers: 1 A/B/C/D/E type. Measurements: 330x195x125mm. Colour: Black.

EL-5192-T1

€129.59

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground IP68 6p 48/96c

EL-486-A1

€153.62

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground 6p +2b(24/48c)

Fiber optic IP68 enclosure for splicing and segregation. IP:68. IK: 10. Adapter capacity: 8 SC adapter type. Entry ports: 6 grommet ports. Exit ports: 6 grommet ports. Trays: 2 trays expandable up to 4 trays. Splicing capacity: 8 x SC 48/96 total splices (12/24 per tray). Measurements: 330x195x125mm. Colour: Black.

EL-486-8S-A1

€158.71

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground 6p+2b(24/48c)

Fiber optic IP68 enclosure for splicing and segregation. IP:68. IK: 10. Adapter capacity: 8 SC type adapters. Included adapters: 8 adapters SC type. Splitter included: Splitter 1:8 short. Entry ports: 6 grommet ports. Exit ports: 6 grommet ports. Trays: 2 trays expandable up to 4 trays . Splicing capacity: 8 x SC 48/96 total splices (12/24 per tray)....

EL-486-8S-18SA

€171.78

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground 4p

Fiber optic box for splices. IP:68. IK: 10. Entry ports: 4 grommet ports. Exit ports: 4 grommet ports. Trays: 1. Splicing capacity: Up to 36 (12/24/36) splices. Dividers: 1 Tipo A/B/C/D/E/F. Measurements: 200x175x80mm. Colour: black.

EL-124-A1

€82.77

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure wall/underground IP67

Fiber optic enclosure for splices. IP:68. IK: 10. Entry ports: 4 grommet ports. Exit ports: 4 grommet ports. Trays: 1. Splicing capacity: 12/36 splices. Dividers: 1 A/B/C/D/E/F trays. Measurements: 200x175x80mm. Colour: Black.

EL-124-B2

€91.52

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure micro duct 2p

4 ports fiber optic blow out microduct box. IP:68. IK: 10. Entry ports: 4 grommet ports. Exit ports: 4 grommet ports. Measurements: 210x95x51,5mm. Colour: Black.

EL-216MD-A1

€43.02

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure micro duct with 8x2 splice holder

4 ports fiber optic blow out microduct box. IP:68. IK: 10. Entry ports: 3 grommet ports. Exit ports: 3 grommet ports. Splicer capacity: Up to 8/16 splices. Measurements: 210x95x51,5mm. Colour: Black.

EL-216MD-B2

€48.53

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure mini wall/pole 2p

Mini enclosure for fiber optic splicing and distribution. IP:68. IK: 10. Entry ports: 2 grommet ports. Exit ports: 2 grommet ports. Splicing capacity: Up to 2/4 splices. Measurements: 196x70x30mm. Colour: Black.

EL-042MINI-A1

€27.18

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure 1 fiber adaptor (not included) ABS black

Fiber optic enclosure for splices. IP:65. IK: 10. Entry ports: 2. Exit porst: 2. Splicing capacity: Up to 1 splice (via adapter). Measurements: 160x45x17mm. Colour: Black.

EL-11-AD

€3.92

IP68 / IP65 -outdoor- fibre enclosures and housings

Closure 1 fiber fusion (with SLH-2D) ABS black

Fiber optic enclosure for splicing. IP:65. IK: 10. Exit ports: 2. Entry prorts: 2. Splicing capacity: Up to 2/4 splices (fusion/mechanical). Measurements: 160x45x17mm. Colour: Black.

EL-11-FUS

€6.80

Accessories for EL encapsulation

Grommet 1 port cable 8 to 12mm

Model: Grommet/Rubber Nº of entries: 1 Cable diameter: 12 a 17mm Compatibility: EL-1446-A1 enclosure

EL-1x8-12-B

€4.89

Accessories for EL encapsulation

Grommet 1 port cable

Model: Grommet/Rubber port Nº of entries: 1 Cable diameter: 12 a 17mm Compatibilty: Enclosure EL-1446-A1

EL-1x12-17-B

€4.89

Accessories for EL encapsulation

Grommet 1 port cable

Model: Grommet/Rubber port Nº deof entries: 1 Cable diameter: 15 a 20mm Compatibility: EL-1446-A1 Enclosure

EL-1x15-20-B

€4.89

Accessories for EL encapsulation

Grommet 1 port cable

Model: Grommet/Rubber port Nº of entries: 1 Cable diameter: 12 a 17mm Compatibility: EL-486-A1/EL-486-8S-A1 Enclosure

EL-1x12-17-A

€3.96

Accessories for EL encapsulation

Grommet 1 port cable 8 to 12mm

Model: Grommet/Rubber port Nº of entries: 1 Cable diameter: 8 a 12mm Compatibility: EL-486-A1/EL-486-8S-A1

EL-1x8-12-A

€3.96

Accessories for EL encapsulation

Grommet 1 port Cable 15 a 18,5mm

Model: Grommet/rubber port Nº of entries: 1 Cable diameter: 15 a 18,5mm Compatibility: EL-216-MD-A1 enclosure

EL-1x15-18,5-MDC

€1.86

Accessories for EL encapsulation

Grommet 1 port cable 8mm

Model: Grommet/rubber port Nº of entries: 1 Cable diameter: 8mm Compatibility: EL-042MINI-A1 enclosure

EL-1x8-M

€2.56

Showing 1-24 of 32 item(s)
