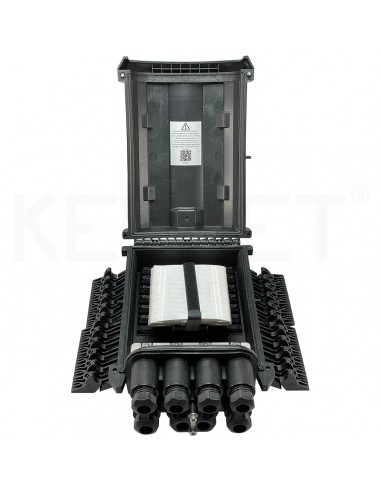

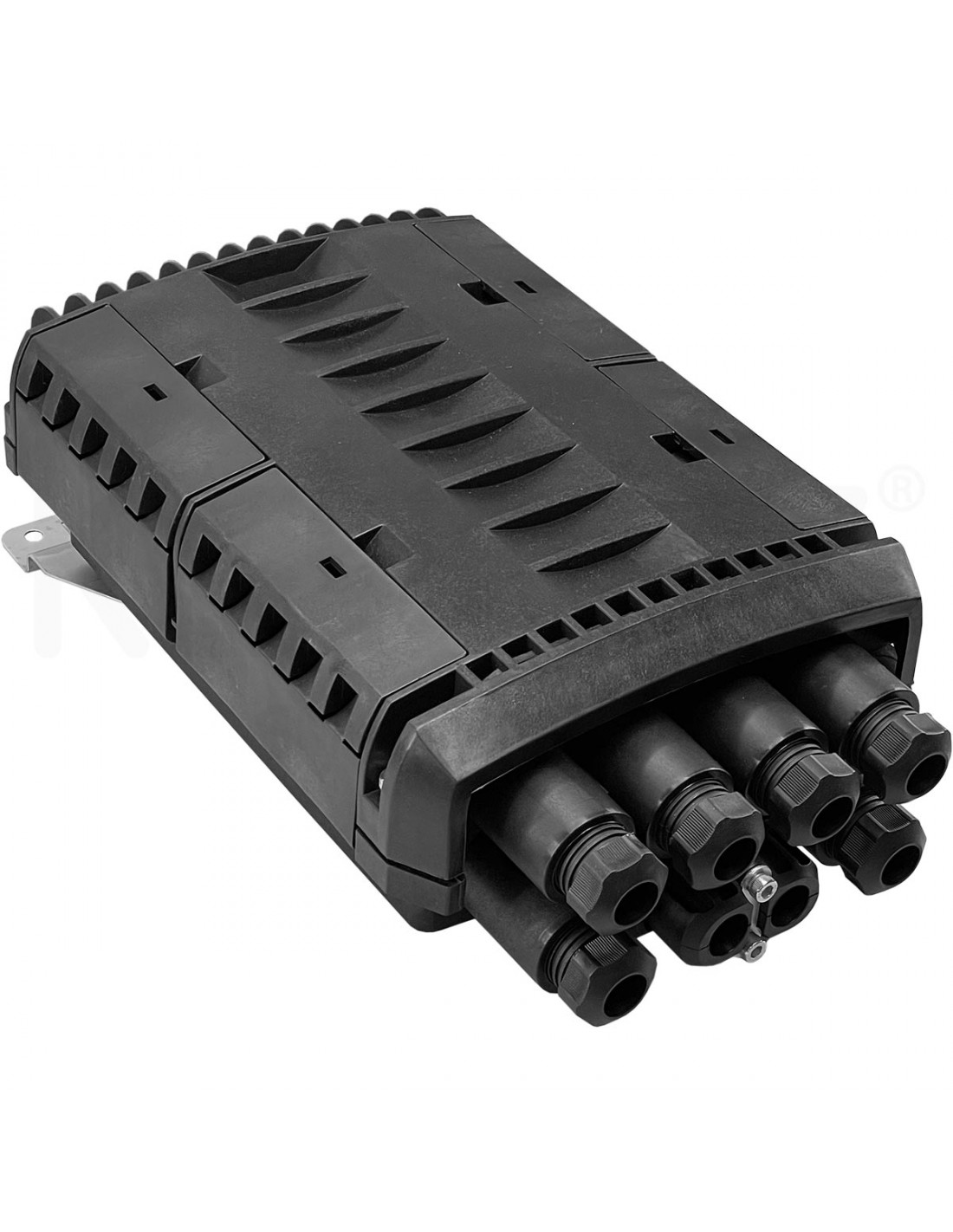

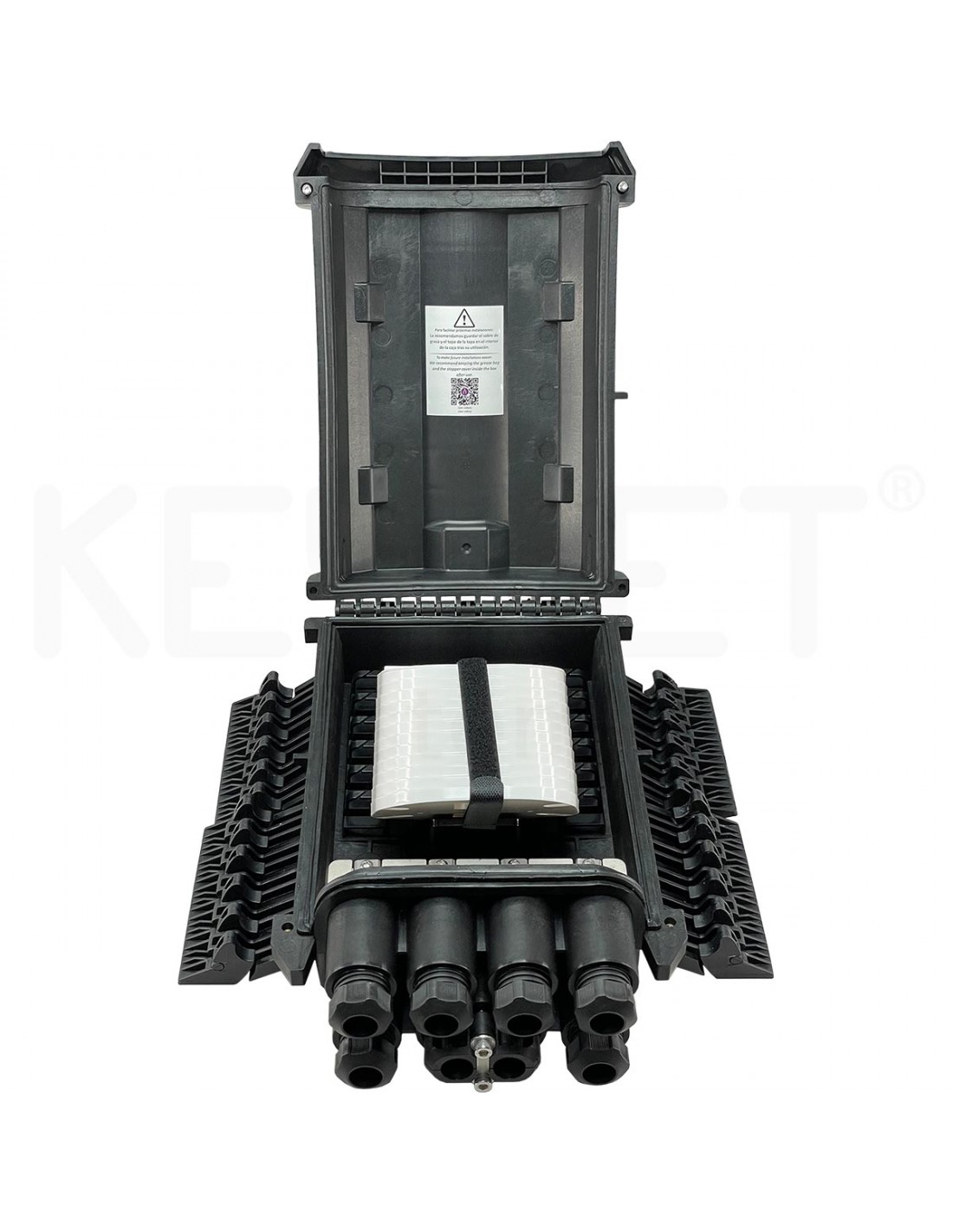

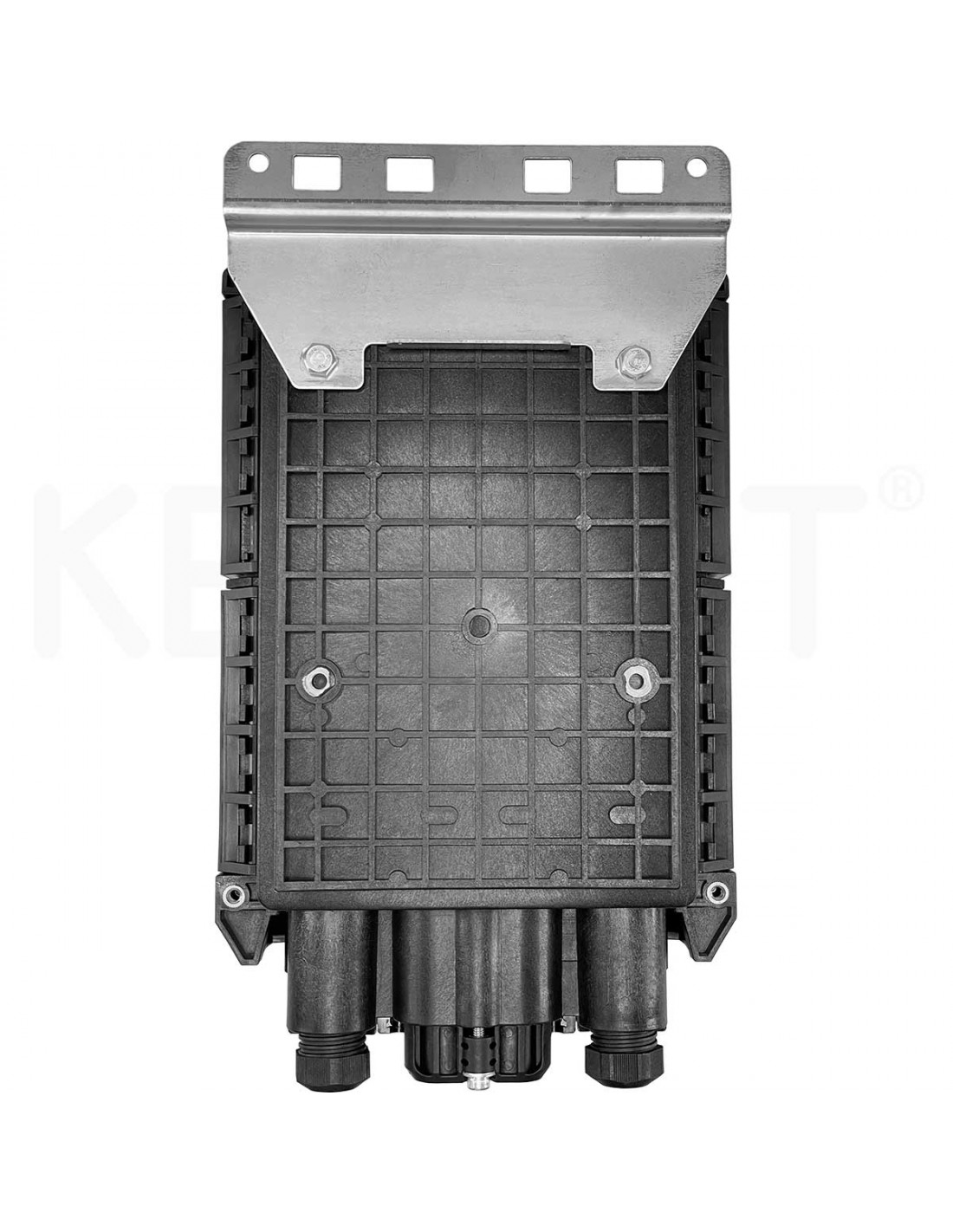

FTTh FO splice closure IP68, 1oval+6ports, 10trays 244 fus.

FTTH-1000-8

FTTh fiber optic distribution box IP68 exterior.

IP:68.

Entry ports: 2 x ø 15-20 mm (midspan) with 1 metal support for clamp + tensor + tow press.

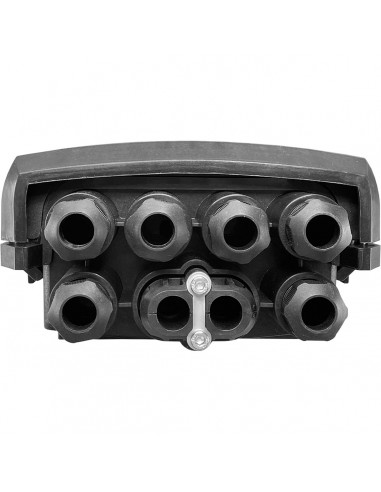

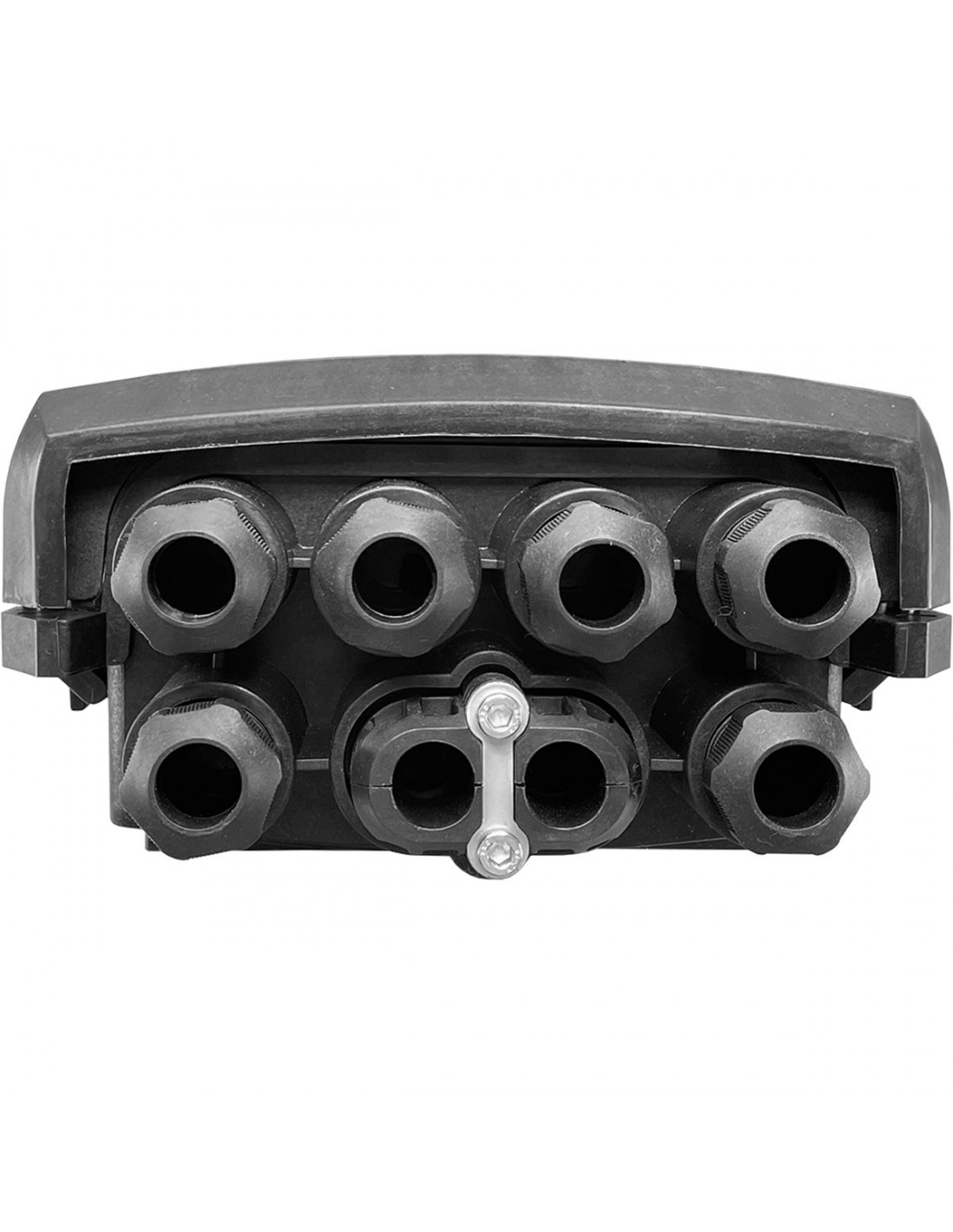

Exit ports: 6 x ø 15-20 mm section grommet.

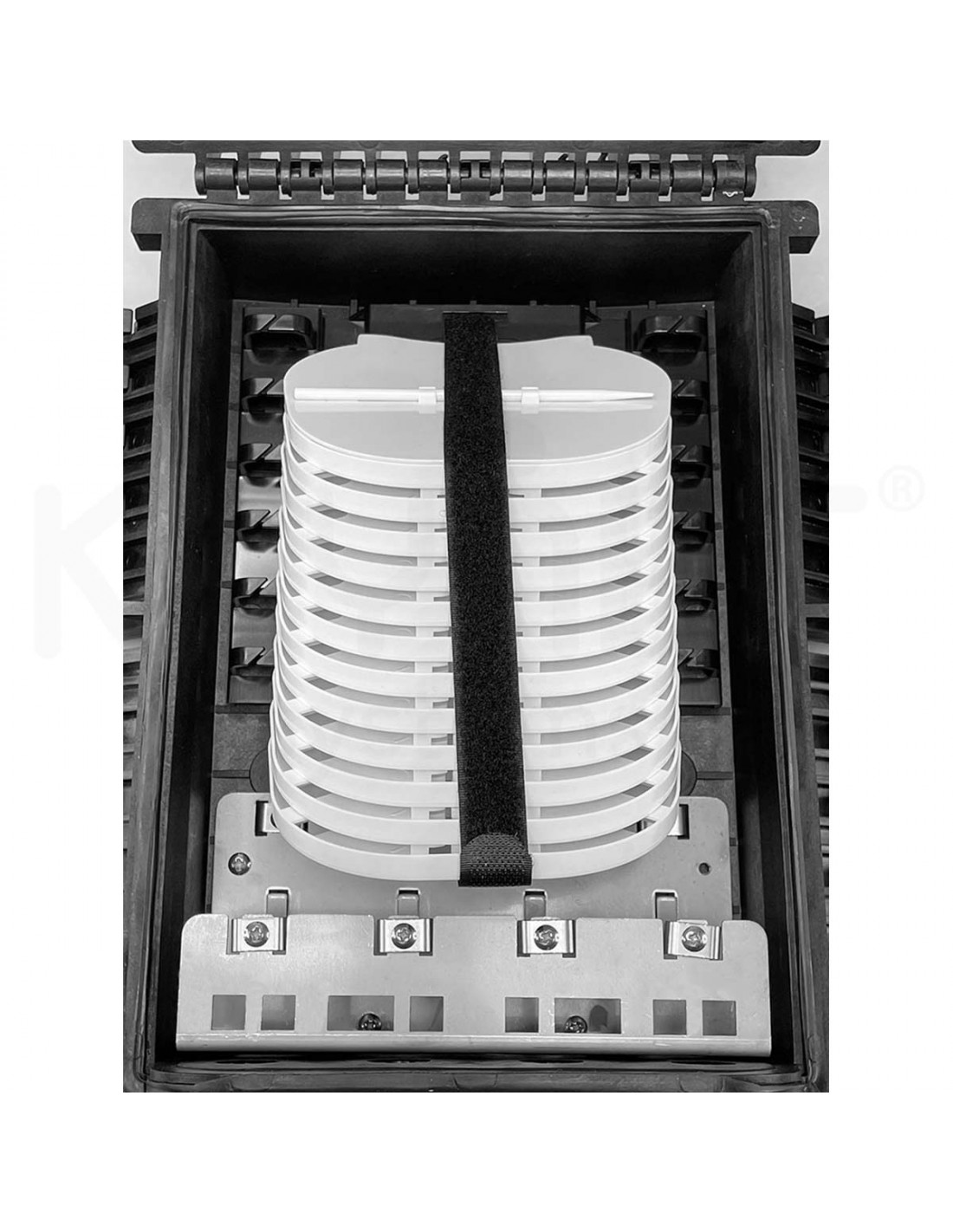

Trays: 12 Trays.

Splicing capacity: up to 144/288 splices.

Dividers: 1 x tipo B/C per tray.

Measurements: 245x395x130mm.

Colour: Black.

€129.80 PVR /ud

VAT excluded

Description

FTTh FO splice closure IP68, 1oval+6ports, 10trays 244 fus. black PP

Product Details

Precio por: ud
IP: 68
Divisores: 1 Tipo B/C (por bandeja)
50 x 7 x 4mm
60 x 7 x 4mm
Dimensiones: 245 x 395 x 130mm
Capacidad total de empalmes: 144/288 fusiones
Colour: Black
Puertos de entrada: 2 puertos de entrada
Puertos de salida: 6 puertos de salida
Bandejas: 12 bandejas

It is necessary to be registered in order to view and download the technical documentation. Please choose an option: I want to register or I want to log in
