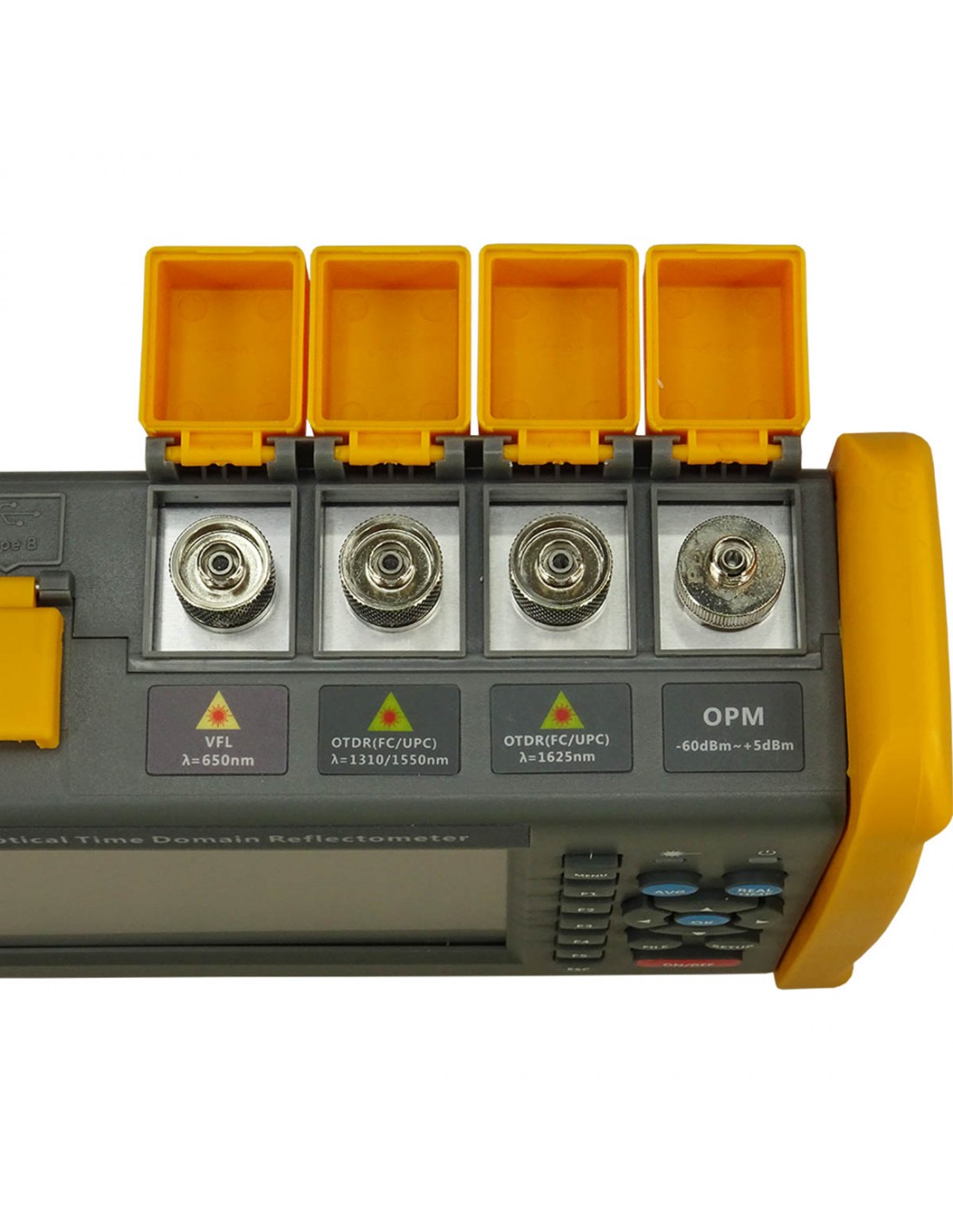

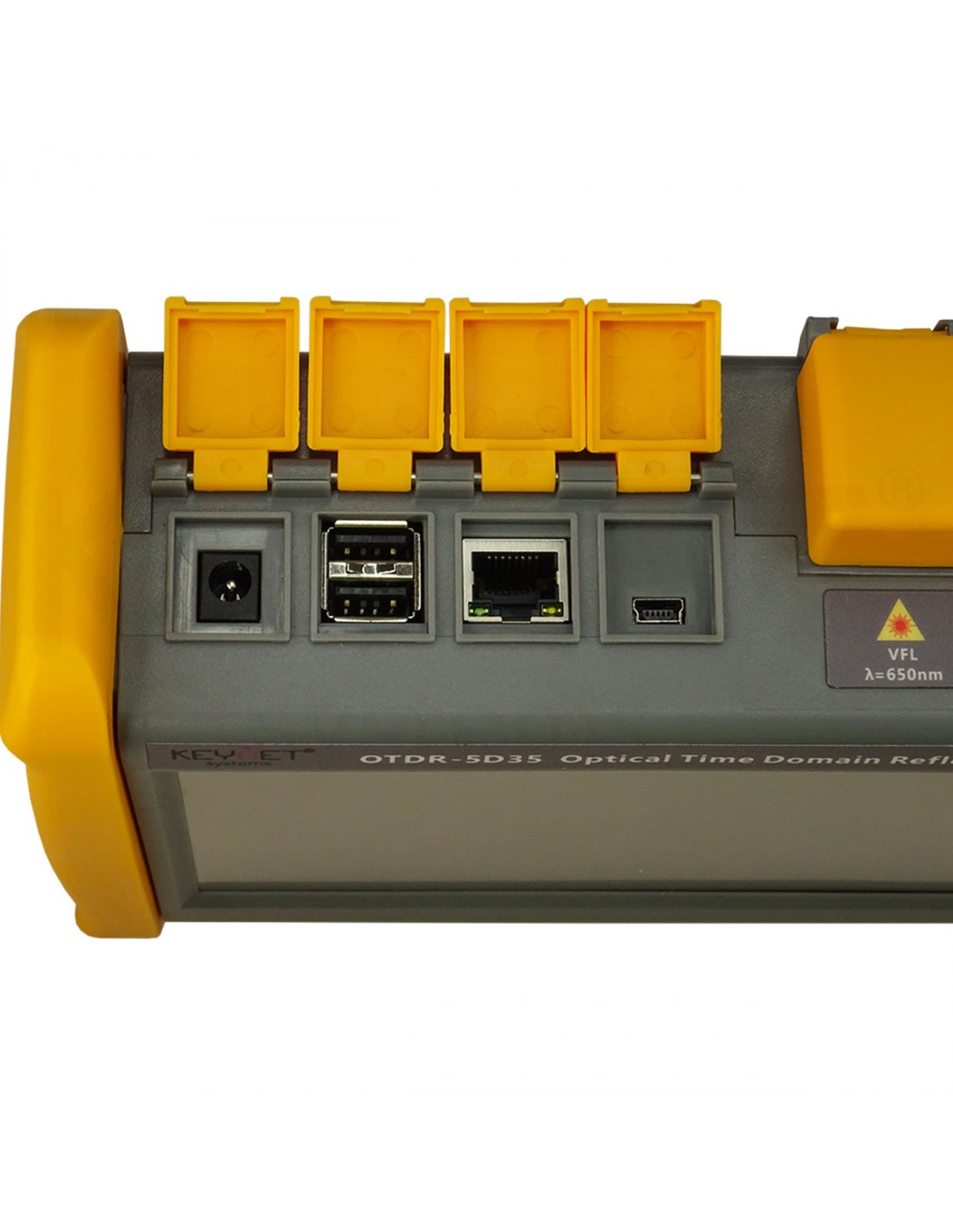

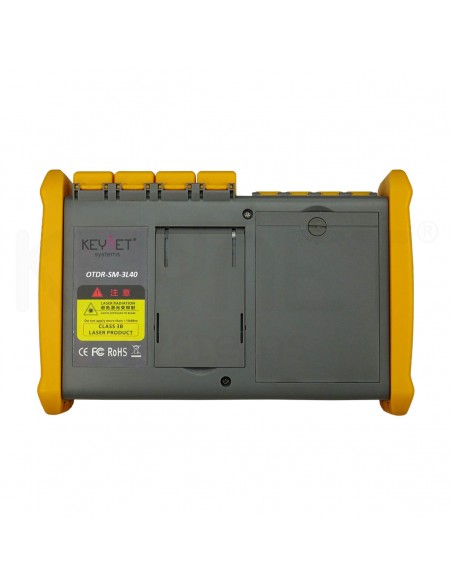

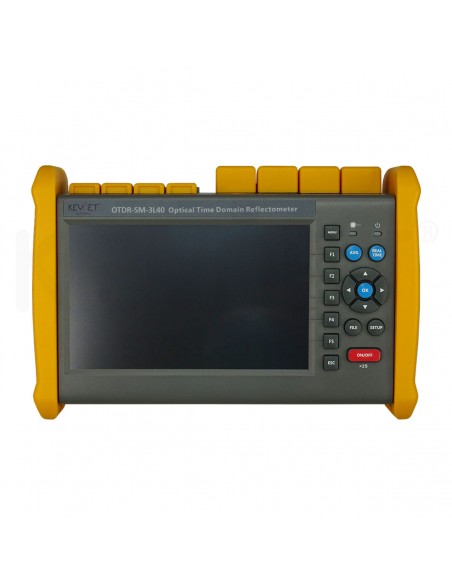

OTDR dual

OTDR-SM-3L40

Model: OTDR SM.

Wave length: 1310/1550/1625nm.

Dynamic range: 40/38/38dB.

Relation: 1.5/8m.

Pulse width: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs.

Sample resolution: minimum 5 cm.

Linearity: ≤0.05dB/dB.

Measurements: 253 × 168 × 73.6mm.

Weight: 1500gr (Battery included).

€5,806.30 PVR /ud

VAT excluded

OTRD tri-lenght 1310/1550/1625nm din range 48/38/38dB, 4m-240Km, VFL
