Optical fiber Instruments

Optic power measuring tool

Model: Optic power measuring tool. Band width: 800 - 1700nm. Calibrated wave length: 850, 1300, 1310, 1490, 1550, 1625nm. Detection type: InGaAs. Measurement range: -70 a +10 @1550nm. Precision: ±0.2dB ±10nW. Storage: 1000 measurements. Adapters: FC/PC - SC/PC. Measurments: 76 x 160 x 45mm. Weight: 270gr.

OPM-71PC

€157.25

Optical fiber Instruments

PON power meter on-line testing tool

Modelo: PON power meter on-line testing tool. Band width: 1260 ~ 1360nm / 1480 ~ 1550nm / 1539 ~ 1565nm. Measurement range: -30 ~ +10. Detector type: InGaAs. Precision: ±0,5 dB. Storage: 1000 measurements. Adapters: FC/PC - SC/PC. Measurements: 105 x 55 x 190mm. Weight: 570gr.

PON-M3L

€429.02

Optical fiber Instruments

Optical laser source SM

Model: Optical laser source. Band width: 1310 / 1490 / 1550nm. Exit stability: < ± 0.05dB @ 1310,1550 nm / < ± 0.1dB @ 1490 nm. Central wave length: ± 20nm. Exit frequency: 270 Hz, 1kHz, 2 kHz. Exit power: -5dBm ± 0.5 dB. Adjustable range: ± 3dB, 0.1 dB. Measurements: 76 x 160 x 45mm. Weight: 270gr.

OLS-53

€407.31

Optical fiber Instruments

Optical laser source SM-MM

Model: Optical laser source SM-MM. Exit wave length: 850/1300 - 1310/1550nm. Exit stability: < ± 0.05dB @ 1310,1550 nm / ± 0.1dB @ 1300 nm. Central wave length: 1310 ± 20 - 1550 ± 20. Exit frequency: 270 Hz, 1kHz, 2 kHz. Exit power: -5dBm ± 0.5 dB. Adjustable range: n/a. Measurements: 76 x 160 x 45mm. Weight: 270gr.

OLS-65

€407.31

Optical fiber Instruments

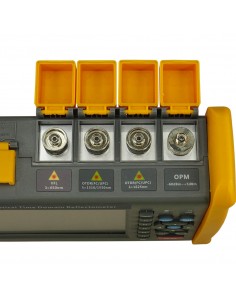

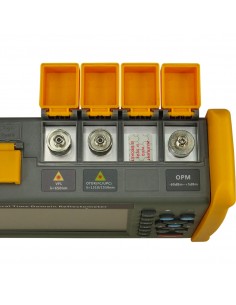

OTDR dual

Model: OTDR SM. Wave length: 1310 / 1550nm. Dynamic range: 35 / 33. Relation: 1.5/8m. Pulse width: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs. Sample resolution: 5 cm minimum. Linearity: ≤0.05dB/dB. Measurements: 253 × 168 × 73.6mm. Width: 1500gr (Battery included).

OTDR-SM-5D35

€1,935.43

Optical fiber Instruments

OTDR dual

Model: OTDR SM. Wave length: 1310/1550/1625nm. Dynamic range: 40/38/38dB. Relation: 1.5/8m. Pulse width: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs. Sample resolution: minimum 5 cm. Linearity: ≤0.05dB/dB. Measurements: 253 × 168 × 73.6mm. Weight: 1500gr (Battery included).

OTDR-SM-3L40

€5,806.30

Optical fiber Instruments

OTDR dual

Model: OTDR MM. Wave length: 850/1300nm (MM) 1310/1550 (SM). Dynamic range: 19/21 (MM) 35/33 (SM). Relation: 1.5/8m. Pulse width: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs. Sample resolution: Mínimo 5 cm. Linearity: ≤0.05dB/dB. Measurements: 253 × 168 × 73.6mm. Weight: 1500gr (Battery included).

OTDR-MD21

€4,970.84

Optical fiber Instruments

Fusion splicer

Modelo: Fiber optic fusion splicers. Motors: 4. Alignment method: Alignment by cladding. Fiber type: SM (G.652-G657), MM (G.651), NZDS (G.655). Cladding diameter: 80 – 150. Coating diameter: 60 – 1000. Splicing programs: 40 groups. Operating program: Manual / Automatic. Splicing time: 7 seconds. Measurements: 120 x 149 x 127mm. Weight: 1900gr.

FS4-R1

€1,711.52

Optical fiber Instruments

Fusion splicer

Model: Fiber optic splicer. Motors: 6. Alignment method: Core alignment. Fiber type: SM (G.652-G657), MM (G.651), NZDS (G.655). Cladding diameter: 80 – 150. Coating diameter: 160 – 3000. Splicing programs: SM: 0,02dB - MM: 0,01dB - NZDS 0,04dB. Operating method: Manual / Automatic. Splice time: 6 seconds. Measurements: 141 x 156 x 127mm. Weight: 6800gr.

FS6-A1

€2,704.99

Optical fiber Instruments

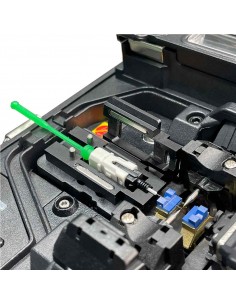

Fusion splicer for ribbon Cable

Model: Direct splicing connector support “SOC” Compatible splicer: FS6-A1 Colour: Black

FS6-SOC

€108.06

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: SC/APC-SC/APC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-A

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC-FC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-B

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC- SC/APC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-C

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC- SC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-D

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC- LC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-E

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: LC/UPC- SC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-F

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: LC/UPC- SC/APC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-G

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: LC/UPC- LC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-H

€371.00

Optical fiber Instruments

OTRD launch box

Model: Launch box. Fiber type: SM G657A2. Reel length: 1000 meters. Connection patchcord: Armoured fiber 1,2mt ø3mm. Patchcord connections: SC/APC- SC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F1000-J

€371.00

Optical fiber Instruments

OTRD launch box

Model: OTRD Launch box. Fiber type: MM OM3. Reel length: 150 meters. Connection Patchcords: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC - SC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F150-MM-D

€439.14

Optical fiber Instruments

copy of OTRD launch box

Model: OTRD Launch box. Fiber type: MM OM3. Reel length: 150 meters. Connection Patchcords: Armoured fiber 1,2mt ø3mm. Patchcord connections: FC/UPC- LC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F150-MM-E

€439.14

Optical fiber Instruments

copy of OTRD launch box

Model: OTRD Launch box. Fiber type: MM OM3. Reel length: 150 meters. Connection Patchcords: Armoured fiber 1,2mt ø3mm. Patchcord connections: LC/UPC- SC/UPC. Measurements: 141 x 238 x 66mm. Material: Polipropylene. Weight: 750 grams.

BL-F150-MM-F

€439.14

Optical fiber Instruments

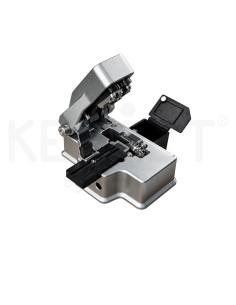

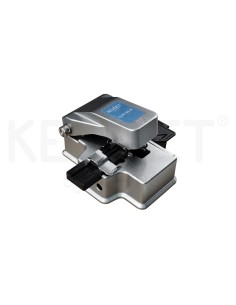

Semiautomatic cleaver

Model: Semiautomatic cleaver. Fibers: ø250µm / ø900µm / ø2mm / ø3mm / flat 3x2mm / flat 2 x 1,6mm. Fiber for cutting: ø125µm. Fiber cut length: 10-16mm. Typical angle of cut: 90 ± 0,5 degrees. Measurements: 58 x 55 x 48mm. Weight: 130 grams.

CLM-04-C

€154.76

Optical fiber Instruments

Visual failure localizer

Model: Visual failure localizer. Wave length: 650 ± 10nm. Emitter type: Laser. Laser security class: 11. Exit power: 1 mW. Maximum range: >4 km (Singlemode) >2 km (Multimode). Exit mode: Continuous or intermitent (2 Hz). Measurements: 26 x 175 x 26mm. Weight: 160 grams (with batteries).

VFL-1MW

€20.29

Showing 1-24 of 34 item(s)

Good instruments make work easier, save time and ensure optimum results. Our products contribute to this.
