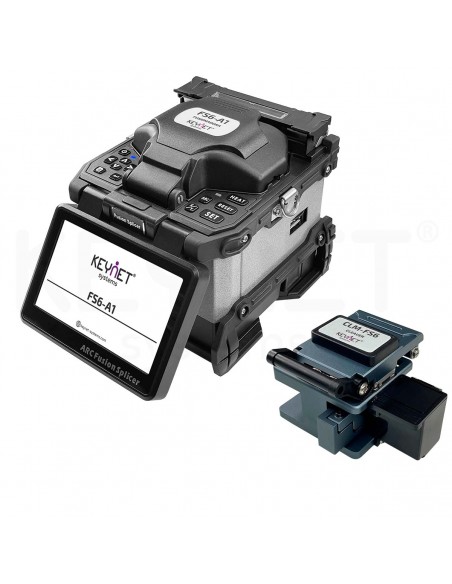

Fusion splicer

FS6-A1

Model: Fiber optic splicer.

Motors: 6.

Alignment method: Core alignment.

Fiber type: SM (G.652-G657), MM (G.651), NZDS (G.655).

Cladding diameter: 80 – 150.

Coating diameter: 160 – 3000.

Splicing programs: SM: 0,02dB - MM: 0,01dB - NZDS 0,04dB.

Operating method: Manual / Automatic.

Splice time: 6 seconds.

Measurements: 141 x 156 x 127mm.

Weight: 6800gr.

€2,704.99 PVR /ud

VAT excluded

Description

Fusion splicer for SM/MM HQ core alignement LCD5" cleaver+accessories

Product Details

Precio por: ud
Tipo de fibra: Monomodo SM
Multimodo MM
Diámetro del cladding: 80 – 150
Diámetro del revestimiento
Proceso de funcionamiento: Manual / Automático
Motores
Tiempo de fusión

It is necessary to be registered in order to view and download the technical documentation. Please choose an option: I want to register or I want to log in
